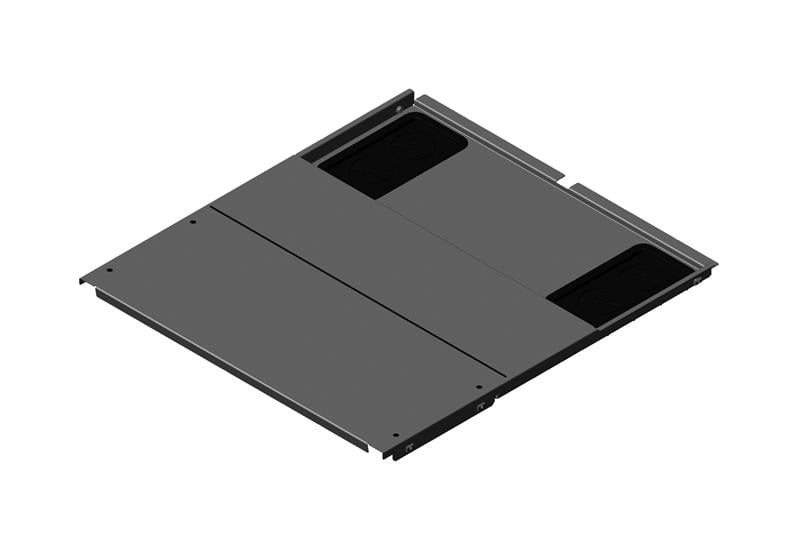

Bottom Panel for F-Series TeraFrame Gen 3 Cabinet
Bottom Panel for F-Series TeraFrame Gen 3 Cabinet
6 Options
Bottom Panel for F-Series TeraFrame Gen 3 Cabinet
Customize Your Product
Width
Color
Explore Sizes & Options
| Product No. | Add to List Add | |||
|---|---|---|---|---|
39132-C01 View Details | 27.5591" (700 mm) | Black | $281.49 | |
39132-C00 View Details | 23.622" (600 mm) | Black | $268.67 | |
39132-C02 View Details | 31.4961" (800 mm) | Black | $294.29 | |
39132-E01 View Details | 27.5591" (700 mm) | Glacier White | $295.58 | |
39132-E02 View Details | 31.4961" (800 mm) | Glacier White | $309.01 | |
39132-E00 View Details | 23.622" (600 mm) | Glacier White | $282.12 |
Product Description
Bottom Panel seals the bottom of the F-Series TeraFrame Gen 3 Cabinets to contain and control airflow in cabinets that are elevated on casters or leveling feet.
Key Features and Benefits
- Solid panel with two brush sealed cable openings
- Two-piece design for easy installation, adjusts in depth to fit cabinet
- Two cable openings, in back corners, are 4.5”W x 9”D (114 mm x 228 mm) without cover, sized for large power plugs
- Brush covers over cable openings, protects cables as they pass through bottom panel, provides a 3.9”W x 8.8”D (99 mm x 223 mm) pass through area for cables
- Brush cover is two halves that snap together around cables and forms a seal
- Used in combination with Air Dam and Vertical Exhaust Duct
- Includes: Bottom panel with brush covers, installation brackets and hardware
- Material: Steel bottom panel; brushes are plastic
- Finish: Black or Glacier White; brushes are black
- Select part number to match the width and color of the cabinet
- Fits cabinet frames that are 39.4”D (1000 mm) and deeper
