Auxiliary Frame

Supports auxiliary framing or Cable Runway from the floor. Material is steel.

Used to attach Cable Runway to auxiliary framing. Gold over zinc plating, solid individually.

Kit consists of:

• (1) Spanner Bolt
• (1) 1/2-13 split lock washer
• (1) 1/2-13 hex nut

For fastening Cable Runway to auxiliary framework. Material is steel finished with gold over zinc plating.

Used to bolt Cable Runway (1143 series only), auxiliary framing channels and/or bars together.

Use to attach a 2" x 1" auxiliary framing channel to a wall angle support. Finish is gold over zinc plating.

Kit consists of:

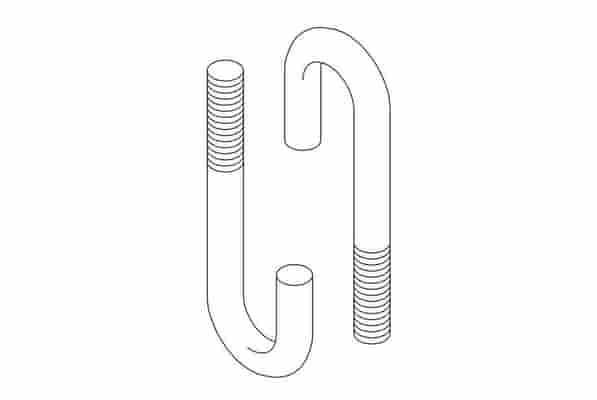

• (2) 1/4-20 x 1-3/4" J-Bolts
• (2) 1/4-20 hex nuts
• (2) 1/4 split lock washers

To attach 1-1/2" cable runway to a 1" x 2" auxiliary framing channel without drilling. Gold over zinc plating.

Kit consists of :

• (1) 1/4" x 1" x 3-1/2" cold-rolled steel plate
• (2) 5-16-18 x 3-1/4" J-Bolts
• (2) 5-16-18 hex nuts, split lock washers

Used to attach a 2" x 1" auxiliary framing channel to a 1-1/2" equipment rack top bar.

Used to attach a 2" x 1" auxiliary framing channel to a 2" x 2" equipment rack top angle. Finish is gold over zinc top angle.

To attach 1-1/2" cable runway to a 1" x 2" auxiliary framing channel without drilling. Gold over zinc plating.

To attach 1-1/2" cable runway to a 1" x 2" auxiliary framing channel without drilling. Gold over zinc plating.

Steel channel or bar commonly used as auxiliary framing for Cable Runways
