1045-00

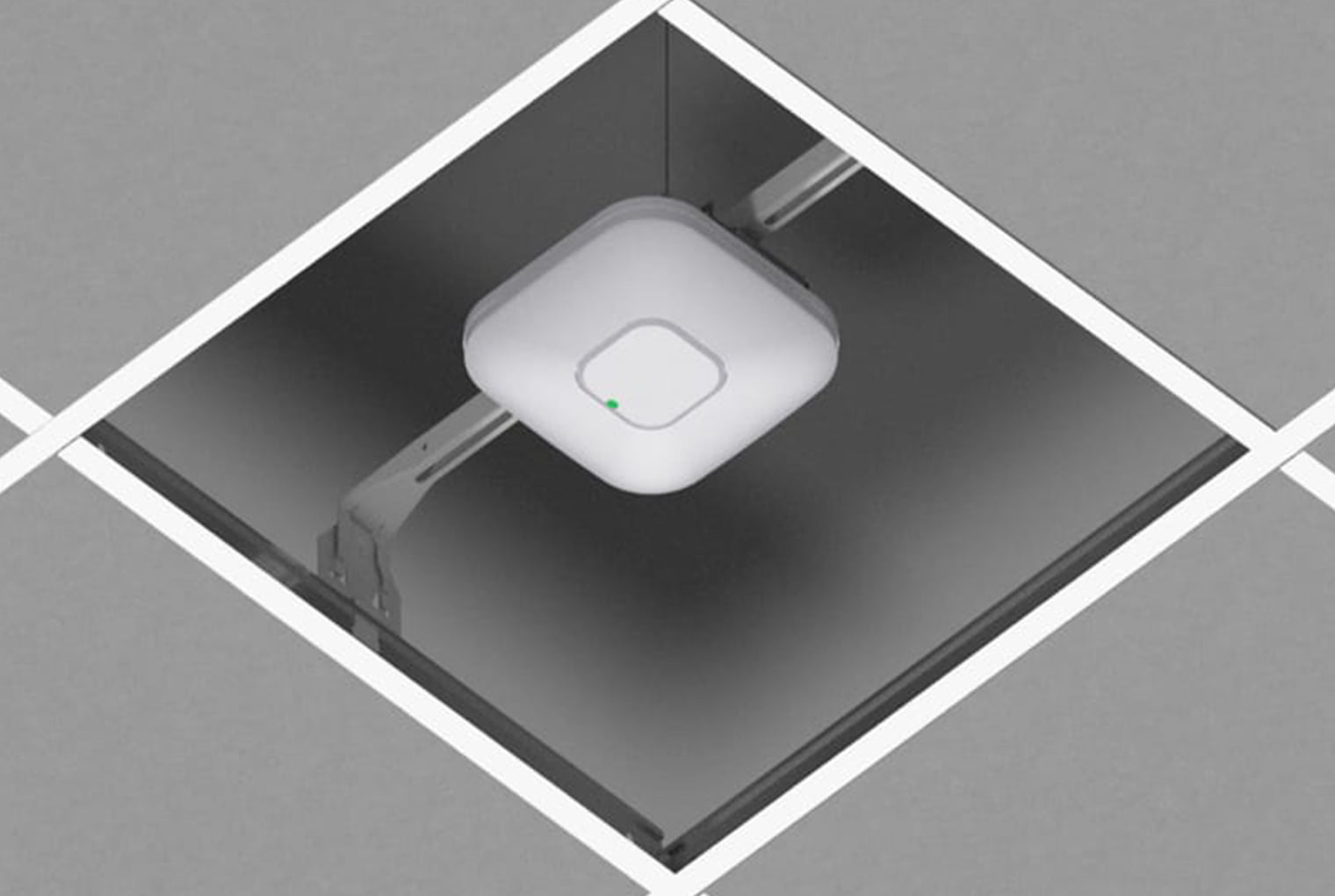

Above Suspended Ceiling Wi-Fi Access Point Mounting Bar for Most AP Models

MSRP $110.00
Door StyleNot Applicable
Access Point Vendor Various
Access Point Model Various
Product Description
  • Sturdy, UL Listed hanger bar placed above suspended ceiling, designed for most vendors’ wireless access points
  • T-bar attaches to hanger bar and permits most vendors’ AP to be attached using ceiling T-bar clip
  • 1.5 ft. light pipe pushed through ceiling tile enables observation of AP status LED without lifting ceiling tile
  • Secure AP above the ceiling
Key Features and Benefits
  • Design: Above-ceiling installation kit for installing APs above a 2 x 2 ft. suspended ceiling. Mounts most vendors’ APs
  • Performance: UL listed and designed to meet NEC300-22 and 300-23 for plenum installations.
  • Includes hanger bar, hanger bar extensions, adjustable wire rope hanger wire, universal T-bar, and light pipe
  • Mounting hardware for most vendors’ APs
  • Light pipe can be pressed through ceiling tile so that status LED is visible
  • Mount must be supported by the building structure, independent of the suspended ceiling, per NEC paragraph 300.11
  • Includes adjustable wire rope hanger wire
  • Not recommended for Healthcare environments due to ICRA procedures
  • Mounting AP above ceiling tile may cause some degradation in AP wireless performance
  • Maximum weight supported is 25 lbs.
  • Size: 23.75 x 1 x 3 in. (603 x 25 x 76 mm)
  • Made in the USA
Access Point Vendor
  • Arista
  • Aruba
  • Cisco
  • Extreme
  • Fortinet
  • Juniper
  • Meraki
  • Ruckus
  • Ubiquiti
Access Point Model
  • Arista C-200
  • Arista C-230
  • Arista C-230E
  • Arista C-250
  • Arista C-260
  • Arista C-330
  • Arista C-360
  • Arista C-460
  • Arista C-460E
  • Aruba AP-325
  • Aruba AP-335
  • Aruba AP-345
  • Aruba AP-504
  • Aruba AP-505
  • Aruba AP-514
  • Aruba AP-515
  • Aruba AP-518
  • Aruba AP-534
  • Aruba AP-535
  • Aruba AP-555
  • Aruba AP-615
  • Aruba AP-635
  • Aruba AP-655
  • Aruba AP-734
  • Aruba AP-735
  • Aruba AP-755
  • Cisco 1602i
  • Cisco 1702i
  • Cisco 2602i
  • Cisco 2702i
  • Cisco 2802i
  • Cisco 3502i
  • Cisco 3602i
  • Cisco 3702i
  • Cisco 3802i
  • Cisco 4802i
  • Cisco C9105AXI
  • Cisco C9115AXI
  • Cisco C9115AXE
  • Cisco C9120AXI
  • Cisco C9120AXE
  • Cisco C9120AXP
  • Cisco C9130AXI
  • Cisco C9130AXE
  • Cisco C9136I
  • Cisco CW9162I
  • Cisco CW9164I
  • Cisco CW9166I
  • Cisco CW9166D1
  • Cisco CW9176I
  • Cisco CW9176D1
  • Cisco CW9178I
  • Extreme AP305C
  • Extreme AP305CX
  • Extreme AP310i
  • Extreme AP310e
  • Extreme AP410i
  • Extreme AP410e
  • Extreme AP410C
  • Extreme AP505i
  • Extreme AP510i
  • Extreme AP510e
  • Extreme AP510C
  • Extreme AP510CX
  • Extreme AP650
  • Extreme AP650X
  • Extreme AP3000
  • Extreme AP3000X
  • Extreme AP4000
  • Extreme AP5010
  • Extreme AP5020
  • Fortinet FAP-221E
  • Fortinet FAP-231G
  • Fortinet FAP-234F
  • Fortinet FAP-241K
  • Fortinet FAP-431F
  • Fortinet FAP-431G
  • Fortinet FAP-432F
  • Fortinet FAP-432G
  • Fortinet FAP-441K
  • Fortinet FAP-831F
  • Juniper BT11
  • Juniper AP21
  • Juniper AP24
  • Juniper AP32
  • Juniper AP32E
  • Juniper AP33
  • Juniper AP34
  • Juniper AP41
  • Juniper AP41E
  • Juniper AP43
  • Juniper AP43E
  • Juniper AP45
  • Juniper AP45E
  • Juniper AP47
  • Juniper AP47D
  • Juniper AP47E
  • Juniper AP64
  • Meraki MR28
  • Meraki MR36
  • Meraki MR42
  • Meraki MR44
  • Meraki MR46
  • Meraki MR46E
  • Meraki MR56
  • Meraki MR57
  • Ruckus R350
  • Ruckus R550
  • Ruckus R650
  • Ruckus R750
  • Ruckus R850
  • Ruckus R560
  • Ruckus R760
  • Ruckus R670
  • Ruckus R770
  • Ubiquiti UAP-U6-PRO
  • Ubiquiti UAP-U6-LITE
  • Ubiquiti UAP-U6-PLUS
  • Ubiquiti UAP-U6-LR
  • Ubiquiti UAP-U6-MESH-PRO
  • Ubiquiti UAP-U6-ENTERPRISE
  • Ubiquiti UAP-U7-PRO
  • Ubiquiti UAP-U7-PRO-MAX
  • Ubiquiti UAP-E7
