Customize Your Product
Trim Style
Access Point Vendor
Explore Sizes & Options
| Product No. | Add to List Add | ||||
|---|---|---|---|---|---|
1444-CW9178 View Details | AP-Specific | Cisco | Cisco CW9178I | $235.00 | |
1444-ARAP755 View Details | AP-Specific | Aruba | Aruba AP-755 | $235.00 | |
1444-CW9176 View Details | AP-Specific | Cisco | Cisco CW9176I | $235.00 | |
1444-NT View Details | Not Applicable | Not Applicable | Not Applicable | $140.00 | |
1444-EXAP5020 View Details | AP-Specific | Extreme | Extreme AP5020 | $245.00 | |
1444-COAP9120 View Details | AP-Specific | Cisco | Cisco C9120AXI | $235.00 | |
1444-ARAP535 View Details | AP-Specific | Aruba | Aruba AP-535 | $235.00 | |
1444-EXAP5010 View Details | AP-Specific | Extreme | Extreme AP5010 | $245.00 | |
1444-COAP9130 View Details | AP-Specific | Cisco | Cisco C9130AXI | $235.00 | |

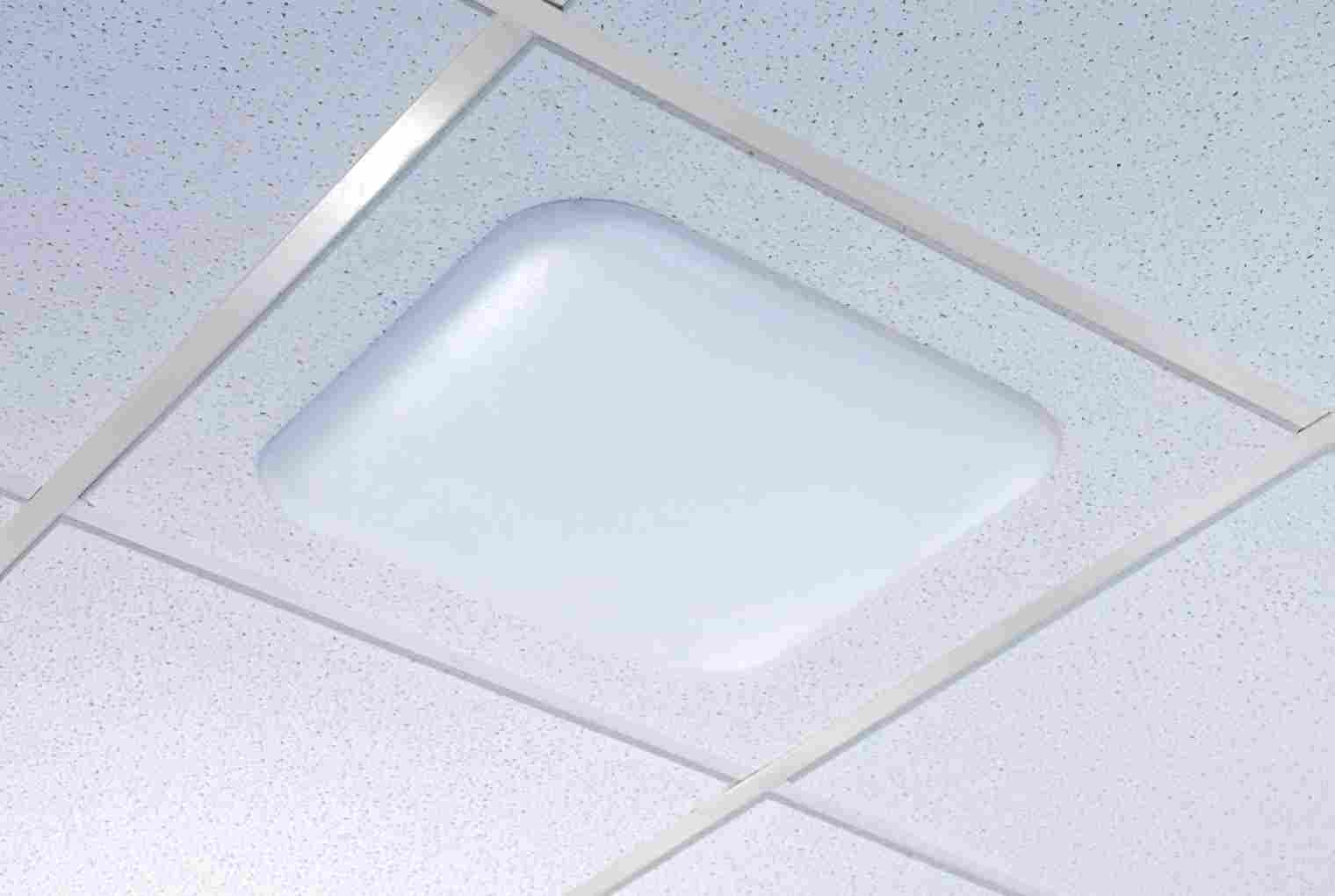

1444-FXL View Details | Plastic Cover | Various | Various | $305.00 | |
1444-ANTMNT View Details | Antenna Mount | Various | Antenna with 1" Center Post | $210.00 | |
1444-ARSTC360 View Details | AP-Specific | Arista | Arista C-360 | $245.00 | |
1444-ARAP515 View Details | AP-Specific | Aruba | Aruba AP-515 | $235.00 | |
1444-ARAP735 View Details | AP-Specific | Aruba | Aruba AP-735 | $235.00 | |
1444-JNAP45 View Details | AP-Specific | Juniper | Juniper AP45 | $245.00 | |
1444-ARAP635 View Details | AP-Specific | Aruba | Aruba AP-635 | $235.00 | |
1444-COAP9136 View Details | AP-Specific | Cisco | Cisco C9136I | $235.00 | |
1444-JNAP43 View Details | AP-Specific | Juniper | Juniper AP43 | $245.00 | |
1444-ARAP655 View Details | AP-Specific | Aruba | Aruba AP-655 | $235.00 | |
1444-CW9166 View Details | AP-Specific | Cisco | Cisco CW9164I, Cisco CW9166I | $235.00 |
Product Description

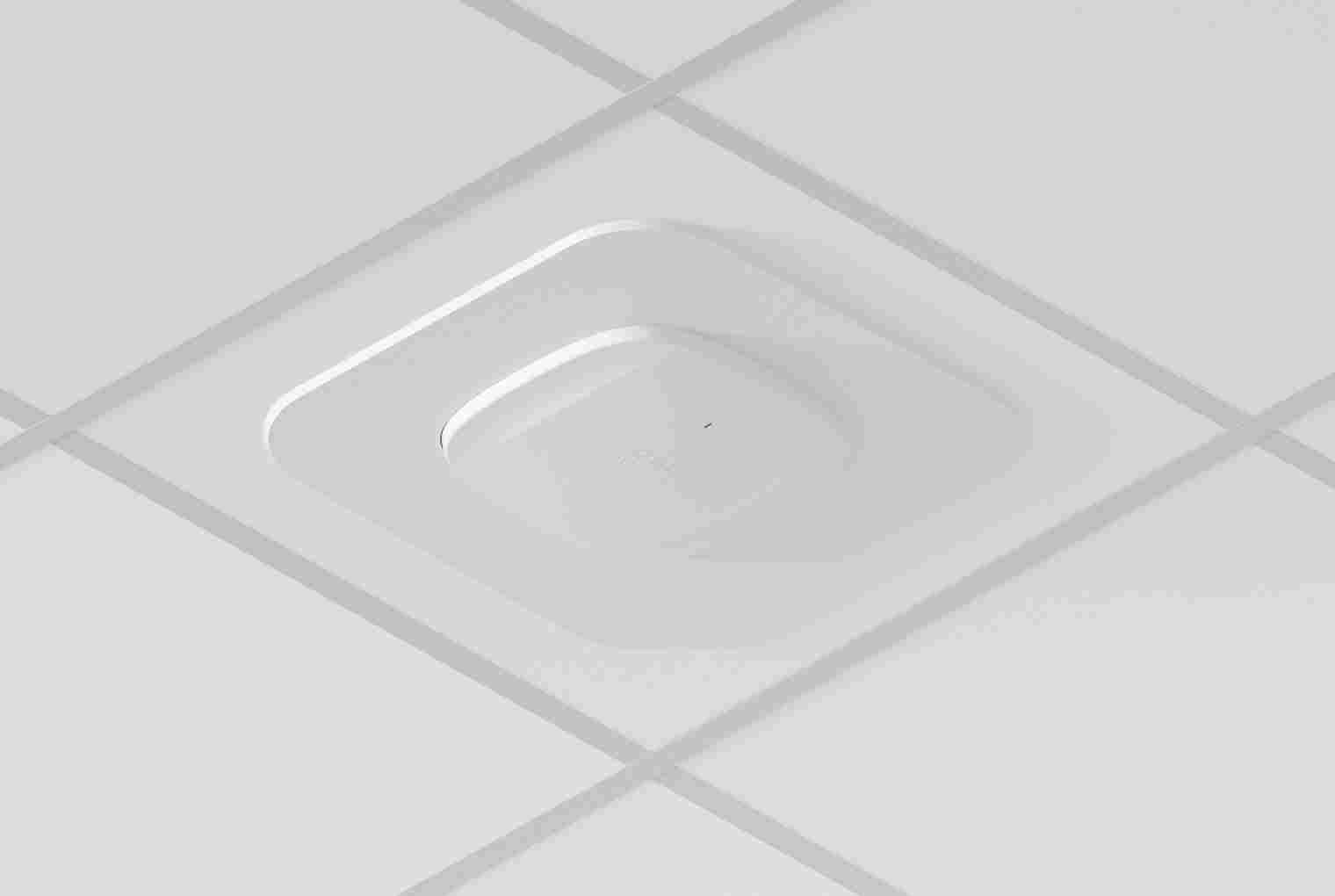

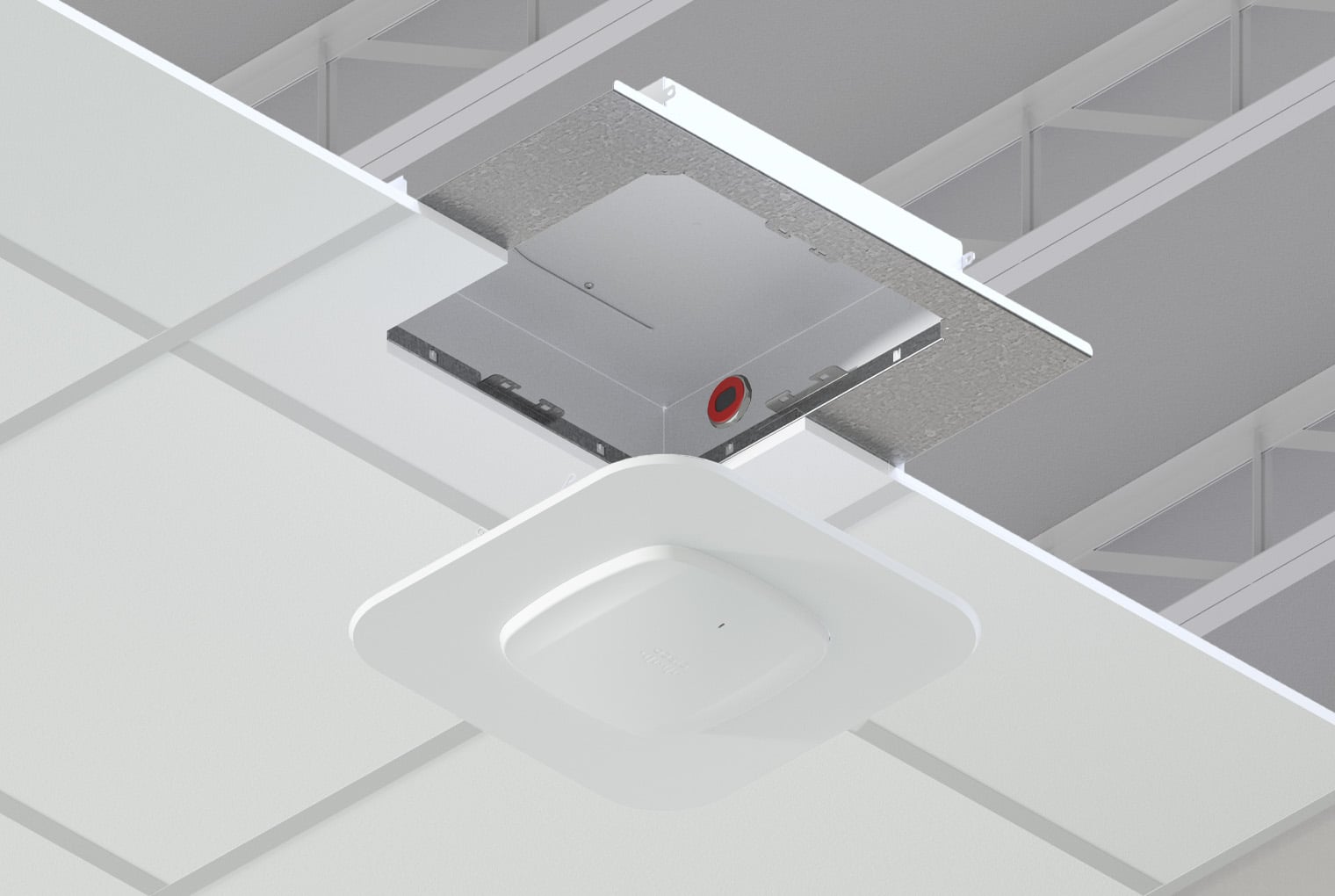

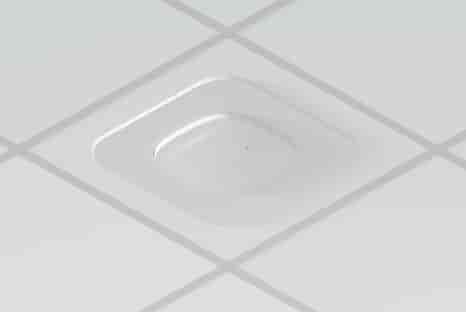

The Model 1444 In-Plane Series is an economical, aesthetic, and easy-to-install suspended ceiling mounting kit for APs from most vendors. A cutout is made in the ceiling tile and the tile bridge and back box is placed above the ceiling panel. The AP fastens within the backbox onto an included mounting bracket or T-bar bracket and the cover attaches to the back-box with torsion springs and conceals the AP. Alternately, an AP-specific trim is used to support the AP front face slightly below the ceiling for optimal wireless coverage. The AP or antenna trim is easily swapped when AP or antenna model changes.
Key Features and Benefits
- Install and conceal APs from most vendors in suspended ceilings
- The cover conceals the AP inside the enclosure providing an aesthetic, professionally installed appearance
- 20 ga. galvanized steel tile bridge and adjustable hanger wire prevent ceiling panel sag or cracking
- Use in plenum or non-plenum ceiling spaces
- Easy to install, no loose hardware
Technical Specifications
- Design: Economical, suspended ceiling installation kit for APs and antennas. AP mounts in recessed box, and AB plastic cover fastens to recessed box with torsion springs providing a low profile, professional finish. Designed for all leading vendors’ APs, as identified in specifications
- Performance: UL listed for low voltage applications, and designed to meet NEC300-22 and 300-23 for plenum installations. De-rate AP operating temperature range by 10°C when mounted inside enclosure
- Safety and Standards: UL 2416, Audio/Video, Information and Communication Technology Equipment Cabinet, Enclosure & Rack Systems; CSA C22.2 NO. 60950-1-07 + Amd. 1 Amd. 2 Information Technology Equipment — Safety. Part 1, General Requirements

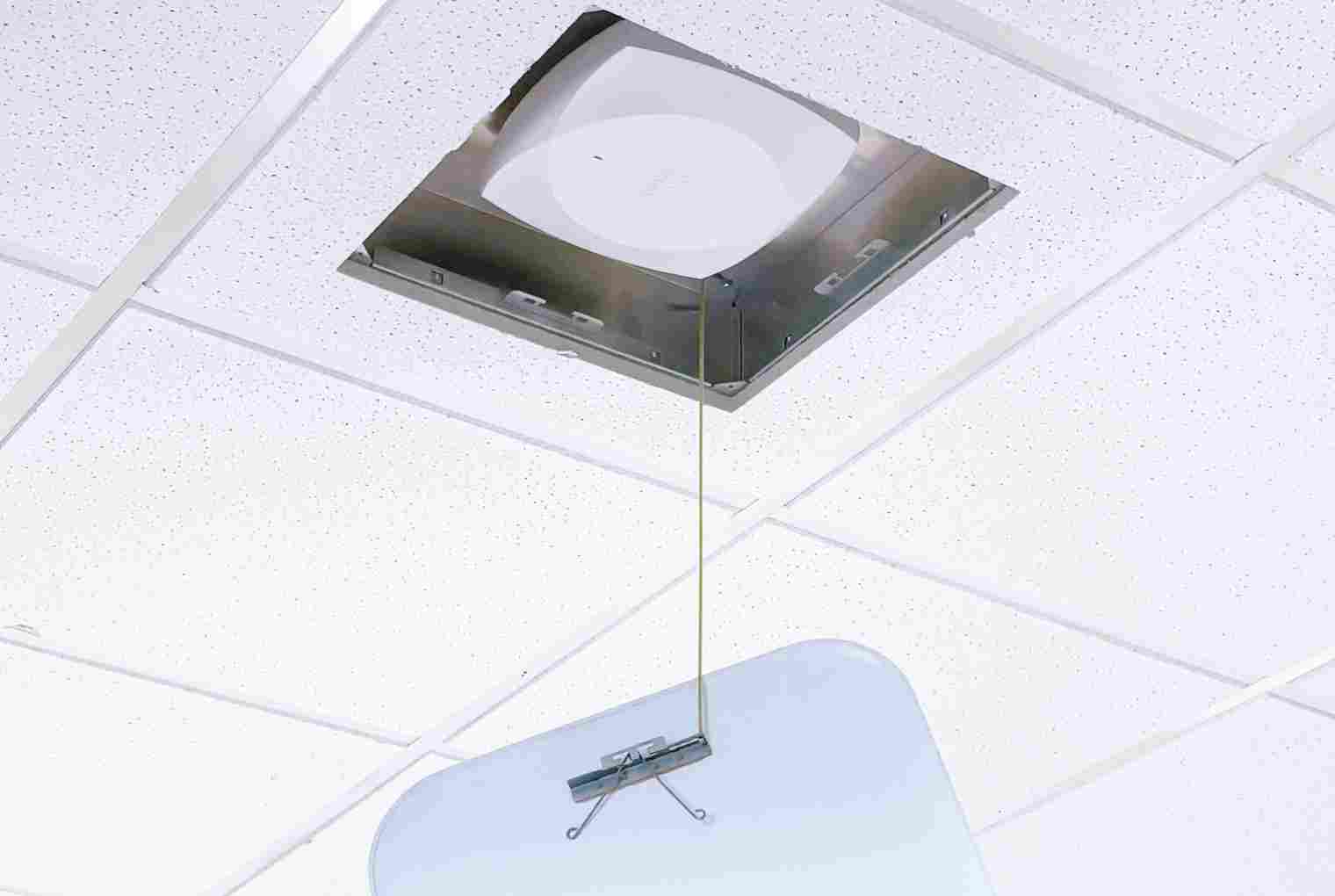

- Cover attaches with torsion spring and is interchangeable with other AP-specific trims for other APs without removing back-box
- Firestop grommet for insertion into back-box, large enough for 2 Ca t6A cables
- 1 in. trade size knockouts in two walls
- Includes hanger wires to support enclosure and installed equipment independent of the ceiling system
- Solid back-box fills opening behind AP, creating an effective smoke and dust barrier to simplify ICRA compliance
- Construction: Aluminum backbox, steel flange, opaque white ABS plastic cover
- Size: Back-box is 14 x 14 x 3.5 in. (356 x 356 x 90 mm).
- Suitable for both North American and European (metric) ceilings
- Made in the USA
Product Includes:
- (1) Backbox and Tile Bridge
- (1) Cover Trim
- (1) AP Mounting Bracket
- (1) T-bar Mounting Bracket
- (1) Dual Cable Egress Firestop Grommet
- (1) 1 in. Trade Size Conduit Connector
- (4) Grid Hanger Wires, 4’L (1.2 m)
- Access Point Attachment Hardware
- Installation Instructions
