Right-Angle Wi-Fi Access Point Wall and Joist Bracket / Black

MSRP $80.00
Access Point Vendor Various
ApplicationWall Surface Mount
ColorBlack
Product Description

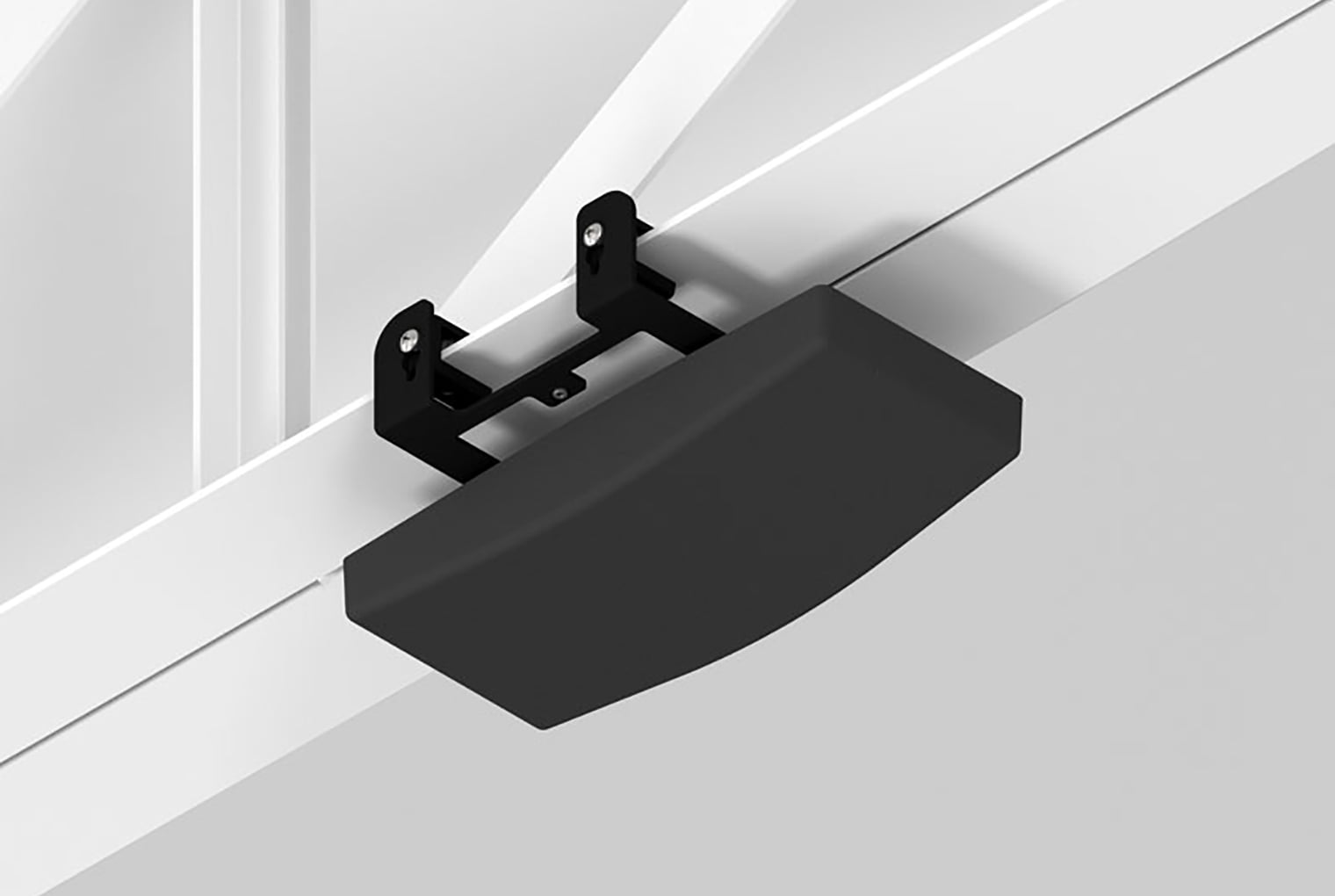

Oberon® Hi-Point™ Open Ceiling and Surface Mount 1008 is an L-shaped mounting bracket that attaches to overhead beams orienting the AP parallel to the floor. Ideal for lower open ceilings in restaurant and retail environments.

•1008, Exterior Size: 2.5” x 7” x 8.4” (64 mm x 178 mm x 214 mm)

•Material: Steel

•Finish: White or Black

Key Features and Benefits
  • Conveniently install and conceal AP in open ceiling environment
  • Enables APs to be mounted in preferred horizontal orientation
  • T-bar bracket accommodates APs from most vendors; includes features for mounting Cisco AIR-AP-BRACKET-2 directly to the right-angle bracket
  • Beam mount clamps allow it to be mounted directly to a beam or truss

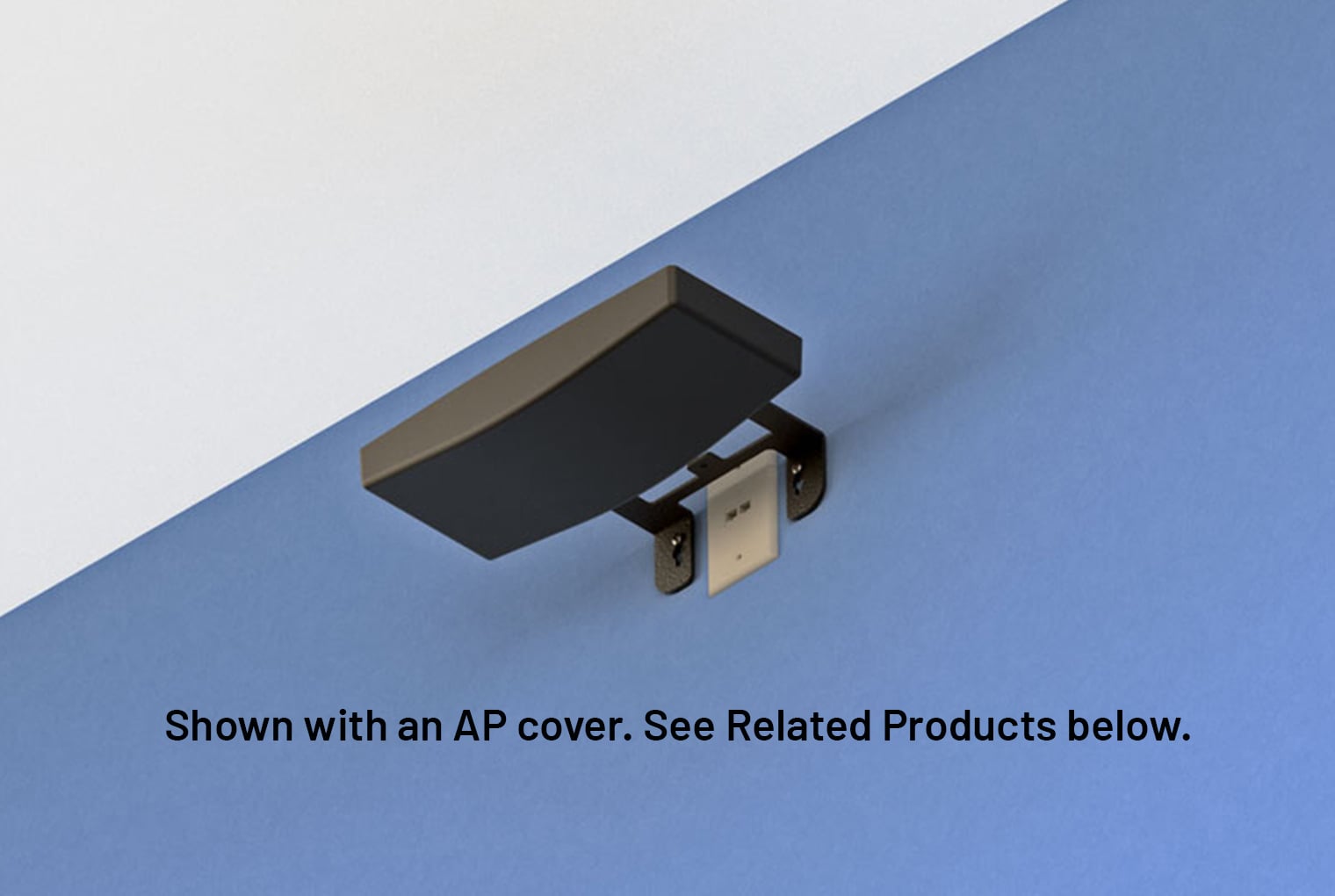

  • AP cover can help to conceal AP in open ceiling environments.
Technical Specifications
  • Design: Right-angle mounting bracket for securing APs on walls, and on ceiling joists and beams in open ceilings. Designed to mount the AP in the preferred horizontal orientation. Accommodates leading vendors’ APs
  • Includes adjustable T-bar bracket for attaching most vendors’ APs, black beam clamps, wall mounting hardware
  • Available in White and Black
  • Construction: 10 ga. powder-coated steel
  • Size: 8.5 x 7 x 3 in. (215 x 178 x 76 mm)
Access Point Vendor
  • Arista
  • Aruba
  • Cisco
  • Extreme
  • Fortinet
  • Juniper
  • Meraki
  • Ruckus
  • Ubiquiti
Access Point Model
  • Arista C-200
  • Aruba AP-325
  • Aruba AP-504
  • Aruba AP-505
  • Aruba AP-514
  • Aruba AP-515
  • Aruba AP-615
  • Cisco C9105AXI
  • Cisco C9115AXI
  • Cisco C9115AXE
  • Cisco CW9162I
  • Extreme AP305C
  • Extreme AP305CX
  • Extreme AP310i
  • Extreme AP310e
  • Extreme AP410i
  • Extreme AP410e
  • Extreme AP410C
  • Extreme AP3000
  • Extreme AP3000X
  • Extreme AP4000
  • Fortinet FAP-221E
  • Fortinet FAP-231G
  • Fortinet FAP-241K
  • Juniper BT11
  • Juniper AP21
  • Juniper AP24
  • Juniper AP32
  • Juniper AP32E
  • Juniper AP33
  • Meraki MR28
  • Ruckus R350
  • Ruckus R550
  • Ubiquiti UAP-U6-PRO
  • Ubiquiti UAP-U6-LITE
  • Ubiquiti UAP-U6-PLUS
