1007-LPDOME
Oberon™ H-Plane™ Right-Angle Surface Mounts 1007
Locking Right-Angle Wall Mount with low profile plastic dome, accommodates most vendors' Wi-Fi Access Points

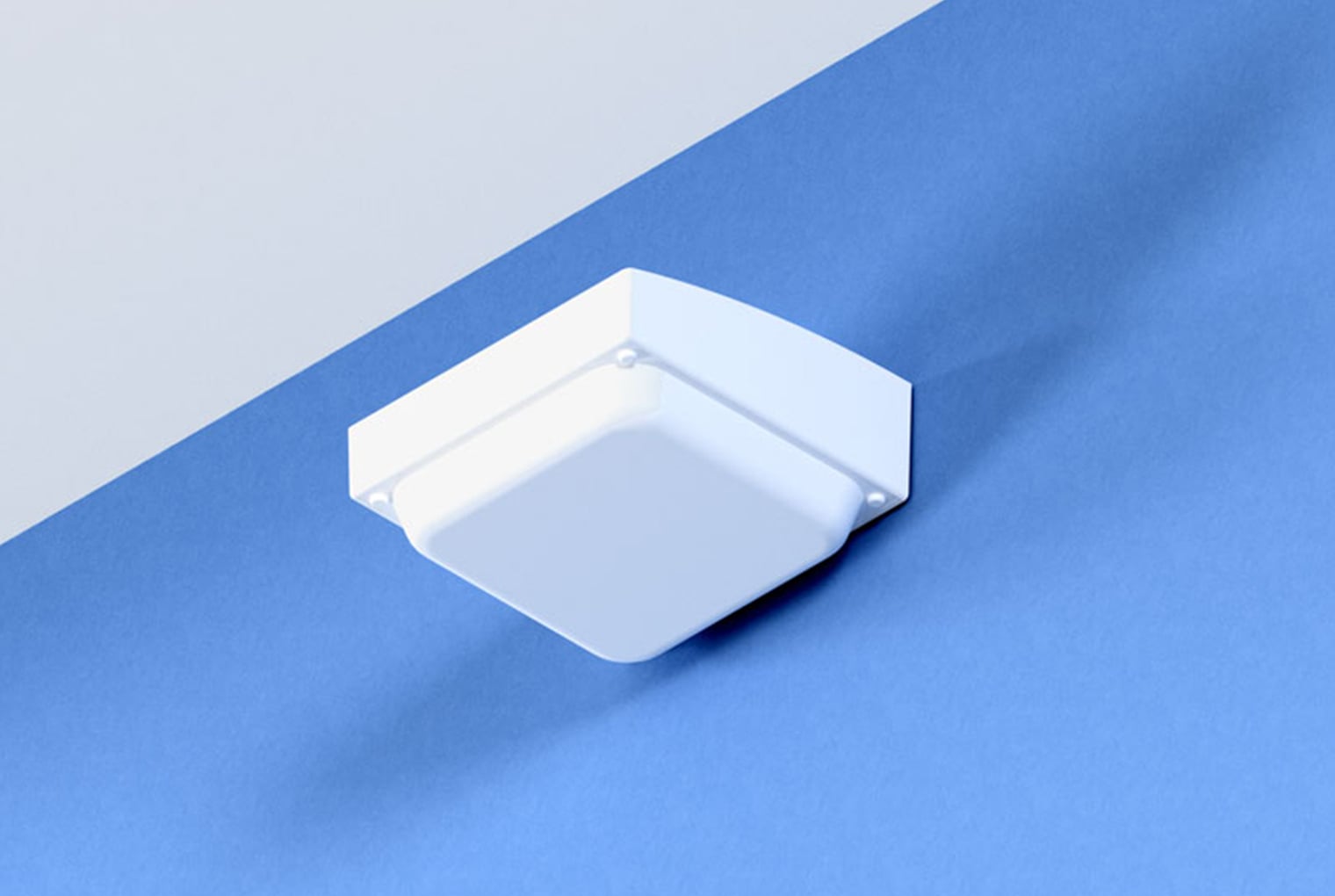

1007 - 1007-LPDOME - Image 0 - Large

View Full Product Description View Documentation
$200.00
Change Product Options
Access Point Vendor:
Various
Access Point Model:
Various
Application:
Wall
Locking:
Yes
Height:
7" (178 mm)
Depth:
14.2" (362 mm)
Finish/ Color:
White
Width:
14.3" (363 mm)
Added To Your Order
Product Image
1007-LPDOME
1007
Qty:
$200.00
Remove

Cart Subtotal:

View Cart Checkout
Contact a sales rep
Helpful Downloads & Links
Product Information
Design Tools
Description

1007 Overview

Many Wi-Fi and Small Cell Access Point (AP) manufacturers recommend APs be mounted in a horizontal orientation for optimal wireless coverage. In locations where the APs are to mounted on the wall, Oberon’s 1007 series H-Plane right angle wall mounts permit the AP to be mounted in the preferred horizontal orientation. With the 1007 series, the AP is partially recessed into the right-angle mount, exposing only the antenna face of the AP, providing for the ideal combination of aesthetics and wireless coverage. A locking plastic cover on the back secures and conceals cabling and connectivity, providing for a nicely finished installation. The 1007-LPDOME/-LTDOME models have a plastic dome which conceals and secures the AP.


Features & Benefits

  • Oberon’s most aesthetic right angle wall mount, conveniently mount APs on the wall
  • Enables AP to be mounted and secured in preferred horizontal orientation
  • Interchangeable trims available for all leading vendors’ APs
  • Model 1007-LPDOME includes white ABS dome which is virtually transparent to the wireless signal

Technical Specifications

  • Design: Right-angle mount for securing APs on walls. Designed to mount the AP in the preferred horizontal orientation
  • AP is partially recessed into mount, revealing only AP antenna face
  • AP can be secured using manufacturer’s locking features
  • Construction: White ABS Plastic Right-Angle Wall Mount, White ABS Plastic UL94-5VA Dome (For -LPDOME Only). 16 Gauge Galvanized Steel T-Bar Bracket (For -LPDOME/-LTDOME Only). White Polypropylene Snap-Caps (For -LPDOME/-LTDOME Only). Black Polypropylene Snap-Caps (For LPDOME/-LTDOME Only)
  • Size: 1007-LPDOME/-LTDOME: 14.3 x 7 x 14.2 in. (363.1 x 177.5 x 361.6 mm)
  • Assembled in the USA

Includes:

  • (1) Plastic Right-Angle Wall Mount
  • (1) White ABS Dome (-LPDOME)
  • (1) T-Bar Bracket
  • Assembly Hardware
  • (4) White and Black Snap-Caps and Washers
  • (2) Keys for Lock

For use with the following Wi-Fi/Small Cell Access Points:

Aerohive
AP110/120, AP20, AP250, AP320, AP330, AP340/350, AP370
Arista
C-130, C-230, C-260
Aruba
AP-135, AP-205, AP-215, AP-225, AP-303, AP-305, AP-315, AP-325, AP-335, AP-345, AP-515, AP-535, AP-555, AP-615, AP-635
Cisco
1532i, 1562i, 1600i/1700i/2600i/2700i/3500i/3600i/3700i Series, 1830i/1850i Series, 2800i/3800i Series, 4800 Series, 9115AXI, 9117AX, 9120AXI, 9130AXI, 9136AXI, CW9166, CW9164, CW9162
Commscope
ION-E
Corning Spidercloud
SCRN-310, SCRN-320/SCRN-220
Extreme Networks
AP305C, AP3705i, AP3710i, AP3715i, AP3765i, AP3801i, AP3805i, AP3825i, AP3935i, AP3965i, AP4000, AP410C, AP410i, AP5010, AP505i / AP510i, AP510C, AP650
Meraki
MR32/34/42, MR33, MR52/53, MR57
Mist
AP21, AP33, AP34, AP43, AP45, BT11
NETGEAR
WAX220
Ruckus
7300 Series and 7025, 7352 and 7372, R310, R320, R510, R610, R710, R730, R750, ZoneFlex H500 View Product Documentation
