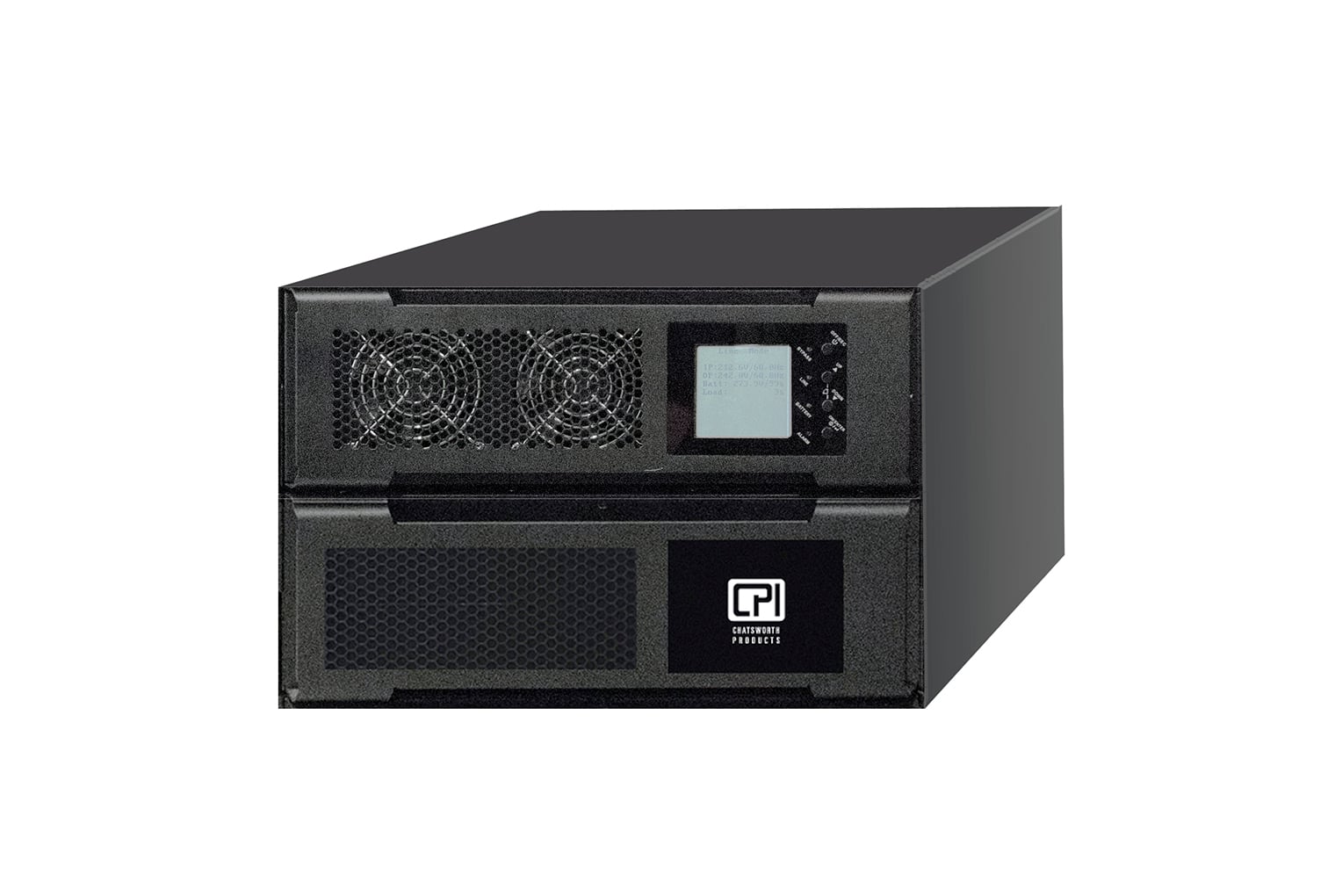

8000VA/8000W Lead-Acid Double Conversion Rack Mount Modular UPS; 6U; Three-Phase; 120/208V; 8' Input Cord with L21-30P; Output Receptacle Panel with L21-30R + 1 30A Breaker; 6 min. Full Load Runtime; Includes SNMP/Web card; Includes 4-Post Rack Mount Rail Kit; TAA Compliant; 2 Year Full Warranty, 10.5"H x 17.5"W x 33.7"D (267 mm x 445 mm x 856 mm); Black

MSRP $14,261.00
VA Capacity8000VA
Capacity Watts8000W
Input PlugL21-30P
Nominal Input Voltage120/208V
Output Receptacles(1) L21-30R
Pre-Installed SNMP/Web CardY
Runtime 100% Load6 minutes
Runtime 50% Load15 minutes
Product Description

VD 3Ph Series — Modular, flexible entry-level three-phase power solution providing continuous power availability and high-efficiency for critical server, network and branch office applications.

Key Features and Benefits
  • Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion.
  • Integral Maintenance Bypass—Simplifies UPS repair or replacement and reduces costly downtime without any need for external component connections.
  • Efficient operation—Best in class energy efficiency provides low energy consumption and heat output.
  • Unity output power factor—Provide more real capacity for high-density loads.
  • Optional receptacle panel—Configure with L21-20R or L21-30R output receptacles. Optional input cord set simplifies field installation.
  • Multiple output voltages—208V and 120V output without the need for any additional isolation transformers.
  • 3-phase input and output—Helps balance loads across all incoming phases into the facility.
