VD10KB

VD10KB - Thumbnail 1
VD10KB - Thumbnail 2
VD10KB - Thumbnail 3

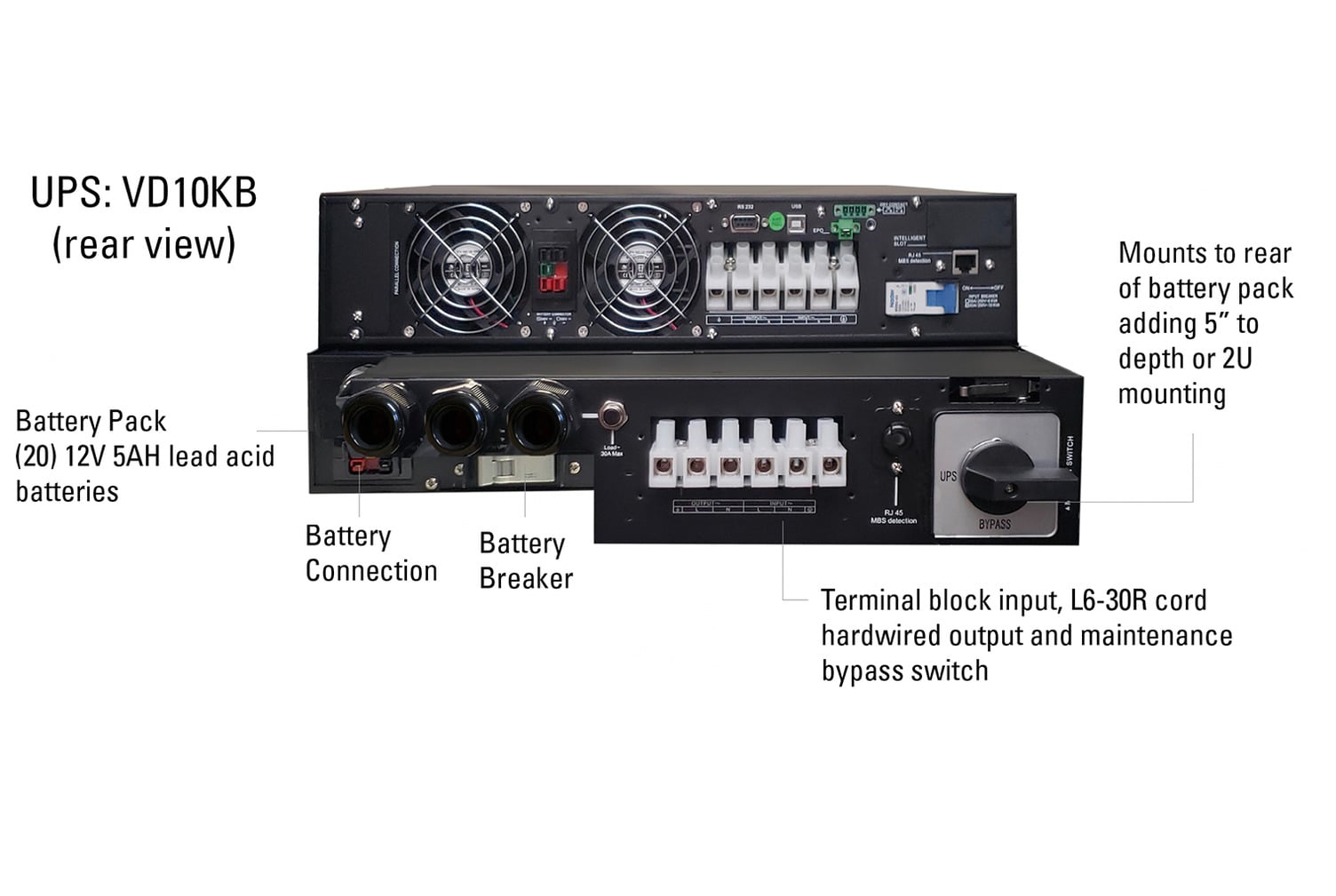

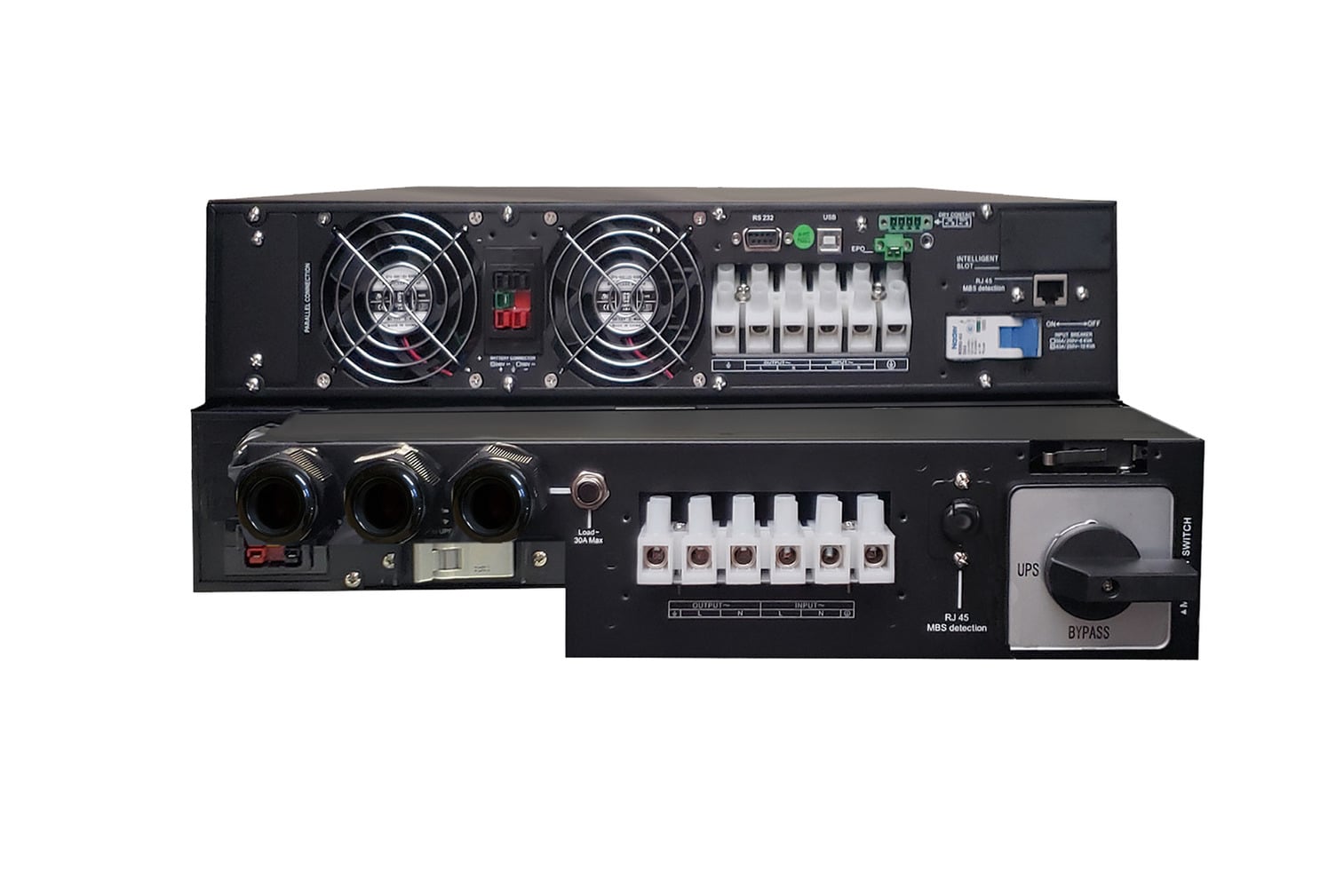

10000VA/10000W Lead Acid Online UPS; 5U; Single-Phase; 200-240V; 6 min Full Load Runtime; Terminal Block Input and Output; Smart LCD Screen; TAA Compliant; 3 Year Full Warranty; 8.75"H x 17.2"W x 27.4"D; 4 Post Rail Kits Included; Black

MSRP $8,763.50
VA Capacity10000VA
Capacity Watts10000W
External Battery OptionY
Input PlugTerminal Block
Nominal Input Voltage200-240V
Output ReceptaclesTerminal Block
Runtime 100% Load6 minutes
Runtime 50% Load15 minutes
Product Description

VD 1Ph Series — Reliable and economical backup power protection for servers and network applications.

Key Features and Benefits
  • Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion
  • Unity output power factor—provide more real capacity for high density loads
  • Efficient operation—up to 98% ECO mode efficiency lowers energy consumption
  • Hot swappable battery—optional battery packs are easy to replace without interrupting the load
  • Multiple communications capability– RS-232, USB, and optional Web/SNMP communications card
  • Maintenance bypass—optional bypass module enables the UPS to be replaced or serviced without interruption of power to critical loads
  • Extended battery runtimes—optional matching battery modules available for extended runtimes
  • Isolation transformer—optional transformer provides 240/120 or 208/120V output

Additional Features

  • Available models: 5kVA/5kW, 6KVA/6kW, 10kVA/10kW
  • Tower, wall, two-post, and four-post rack mounting configurations
  • UL 1778, cUL, FCC, RoHS, CE, TAA compliant
  • 3 years electronics, 3 years battery warranty (USA and Canada)
