12730-118

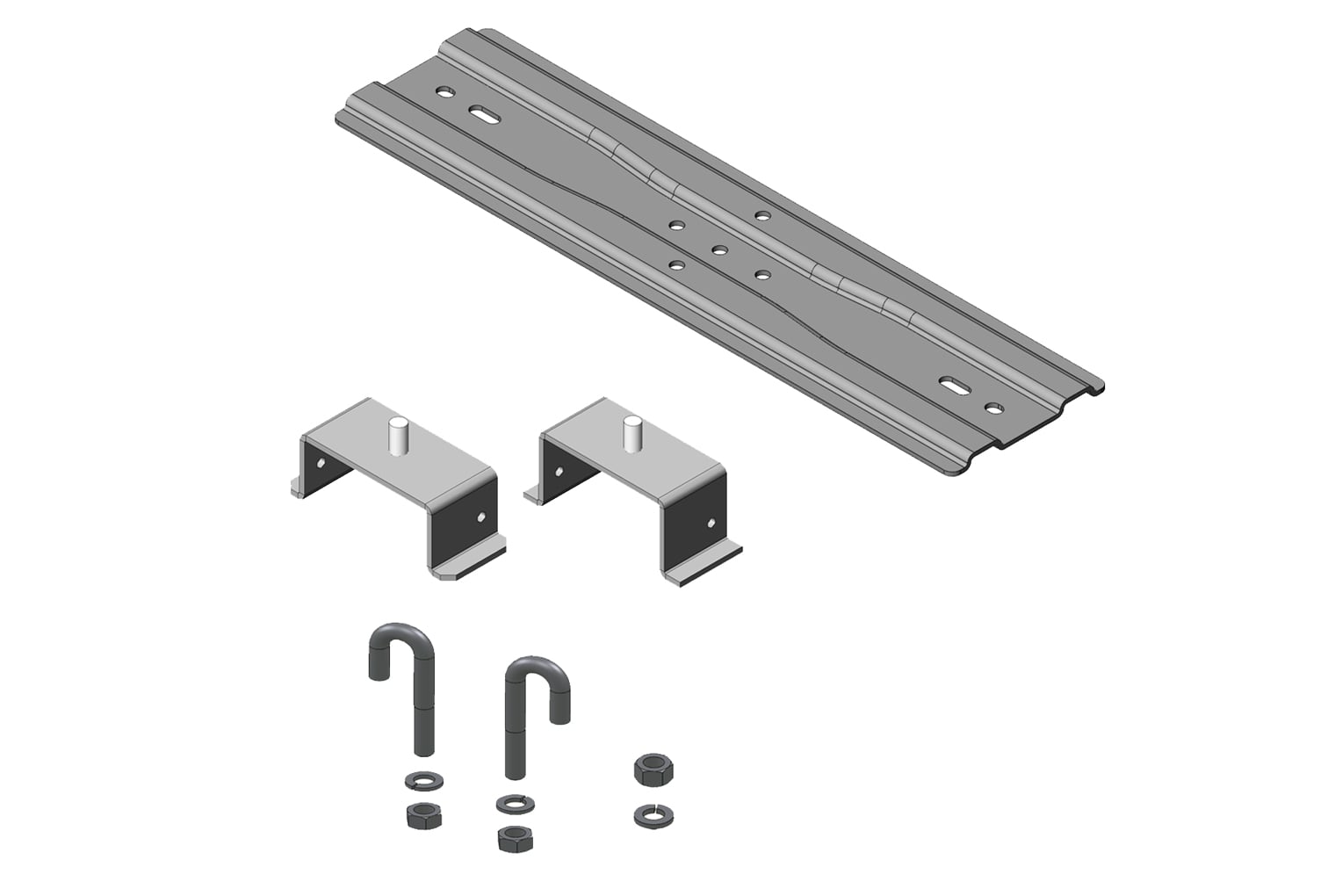

3" (80 mm) Channel Rack-To-Runway Mounting Plate with Bracket; for 15'"W to 18"W (380 mm to 460 mm) Runway; Gray

MSRP $65.96
Runway WidthFor 15" to 18" (380 mm to 460 mm) Runway
ColorGray
Product Description

Secures Runway to the top of Universal Rack without intruding into mounting space. The combination of the flat plate and hat-shaped bracket form a clamp around the rack's top angles or top bars. Mounts parallel or perpendicular. For proper attachment on 6" runway, use top bars (13045 Series) rather than top angles. Installation Best Practices include Runway Elevation Kit (P.N 10506)

Key Features and Benefits
  • (1) mounting plate
  • (2) hat-shaped brackets
  • (2) J-Bolts, 5/16-18 x 2-1/4"
  • (3) hex nuts, 5/16-18
  • (3) split lock washers, 5/16"
