3" (80 mm) Channel Rack-To-Runway Mounting Plate

3" (80 mm) Channel Rack-To-Runway Mounting Plate

3" (80 mm) Channel Rack-To-Runway Mounting Plate

3" (80 mm) Channel Rack-To-Runway Mounting Plate

3" (80 mm) Channel Rack-To-Runway Mounting Plate

3" (80 mm) Channel Rack-To-Runway Mounting Plate






3" (80 mm) Channel Rack-To-Runway Mounting Plate
14 Options
Customize Your Product
Type
Color
Explore Sizes & Options
Product No. | Add to List | |||
---|---|---|---|---|
10595-118 View Details | For Use With 15" to 18" (380 mm to 460 mm) Tray | Gray | $57.95 | |
10595-708 View Details | For Use With 5" to 8" (130 mm to 200 mm) Tray | Black | $53.18 | |
10595-E18 View Details | For Use With 15" to 18" (380 mm to 460 mm) Tray | Glacier White | $63.75 | |
10595-E08 View Details | For Use With 5" to 8" (130 mm to 200 mm) Tray | Glacier White | $58.48 | |
10595-E04 View Details | For Use With 4" (100 mm) Tray | Glacier White | $56.19 | |
10595-712 View Details | For Use With 9" to 12" (230 mm to 300 mm) Tray | Black | $55.28 | |
10595-E12 View Details | For Use With 9" to 12" (230 mm to 300 mm) Tray | Glacier White | $60.83 | |
10595-704 View Details | For Use With 4" (100 mm) Tray | Black | $51.05 | |
10595-718 View Details | For Use With 15" to 18" (380 mm to 460 mm) Tray | Black | $57.95 | |
10595-112 View Details | For Use With 9" to 12" (230 mm to 300 mm) Tray | Gray | $55.28 | |
12408-724 View Details | For Use With 20" to 24" (510 mm to 610 mm) Tray | Black | $104.31 | |
12408-524 View Details | For Use With 20" to 24" (510 mm to 610 mm) Tray | Clear | $104.31 | |
12408-E24 View Details | For Use With 20" to 24" (510 mm to 610 mm) Tray | Glacier White | $114.78 | |
12408-124 View Details | For Use With 20" to 24" (510 mm to 610 mm) Tray | Gray | $104.31 |
Product Description

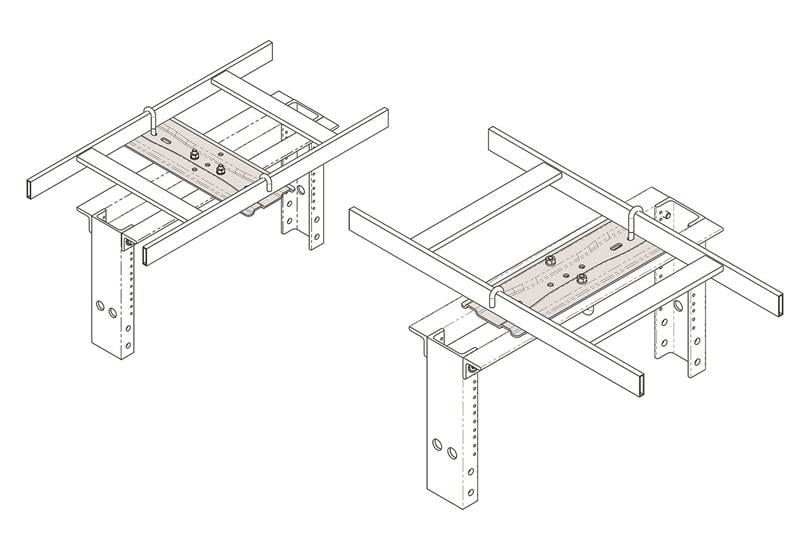

Secures cable runway to the top of Standard and Universal equipment racks. J-Bolts hook under the mounting plate to secure the plate to the rack's top angle. Mounts either parallel or perpendicular. For proper attachment of 6"W (150 mm) Cable Runway, use top bars (13045 Series) rather than top angles on the rack.
Key Features and Benefits
- Various sizes accommodate our popular cable runway widths and rack depths
- Parallel or perpendicular mounting, simply turn the mounting plate

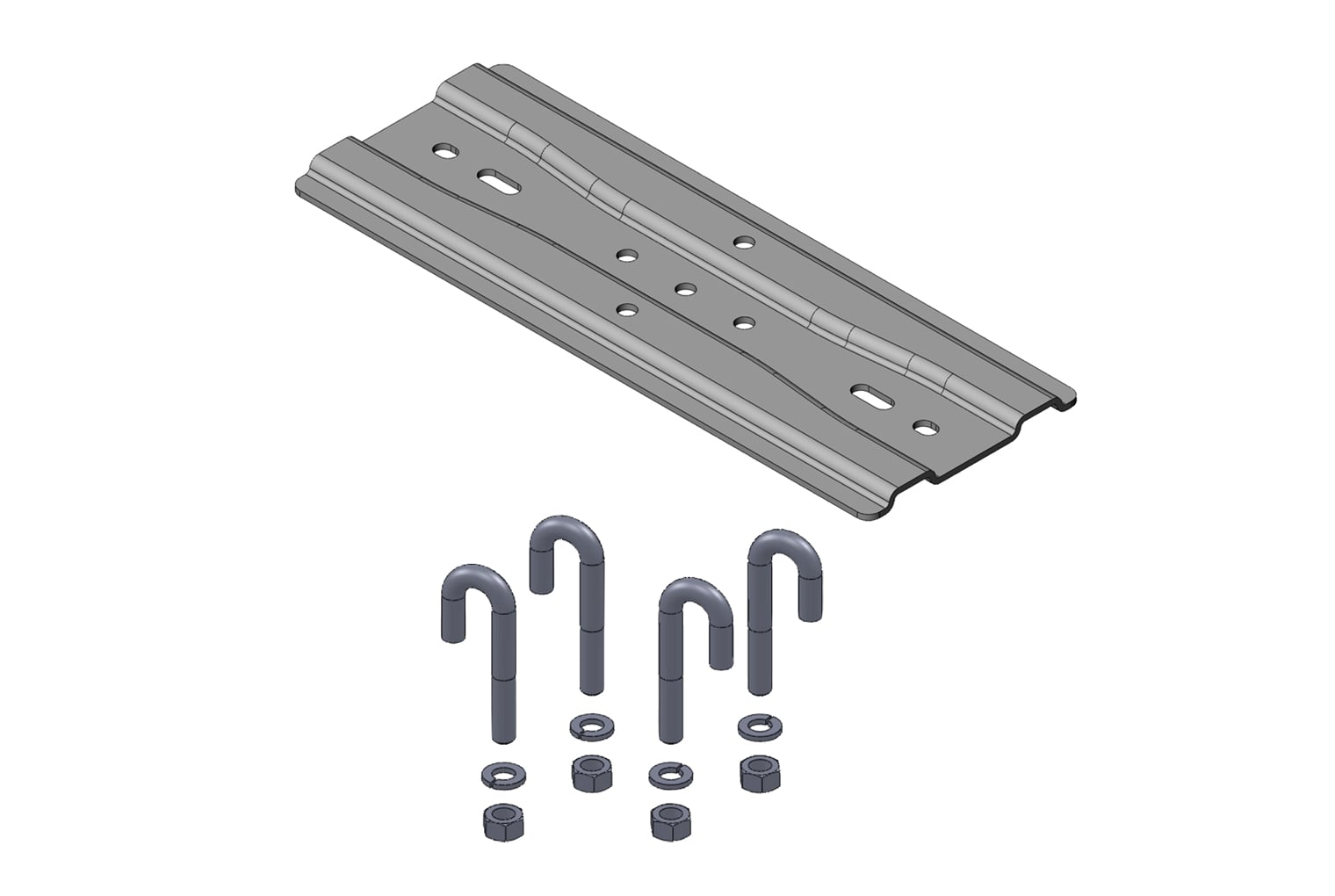

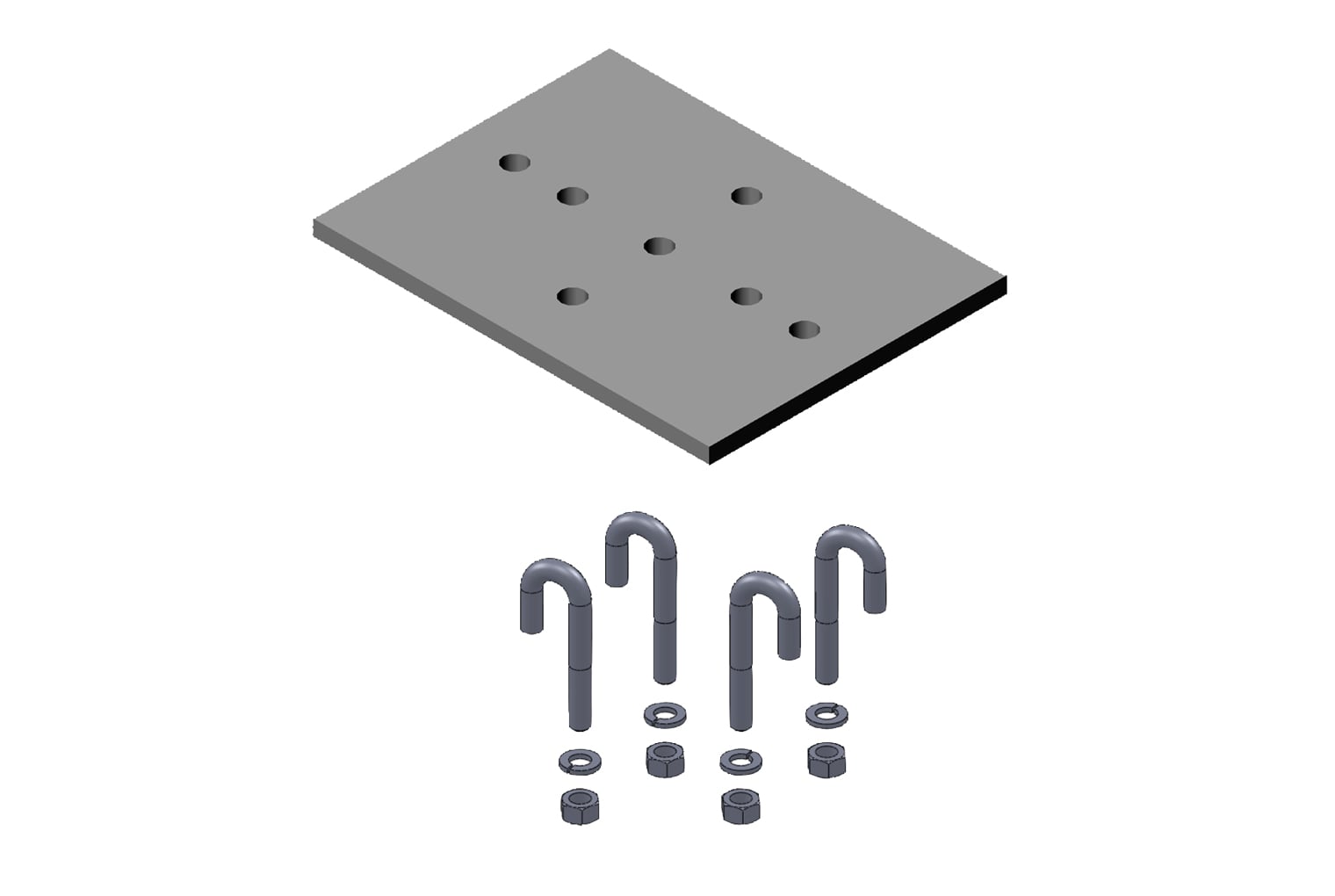

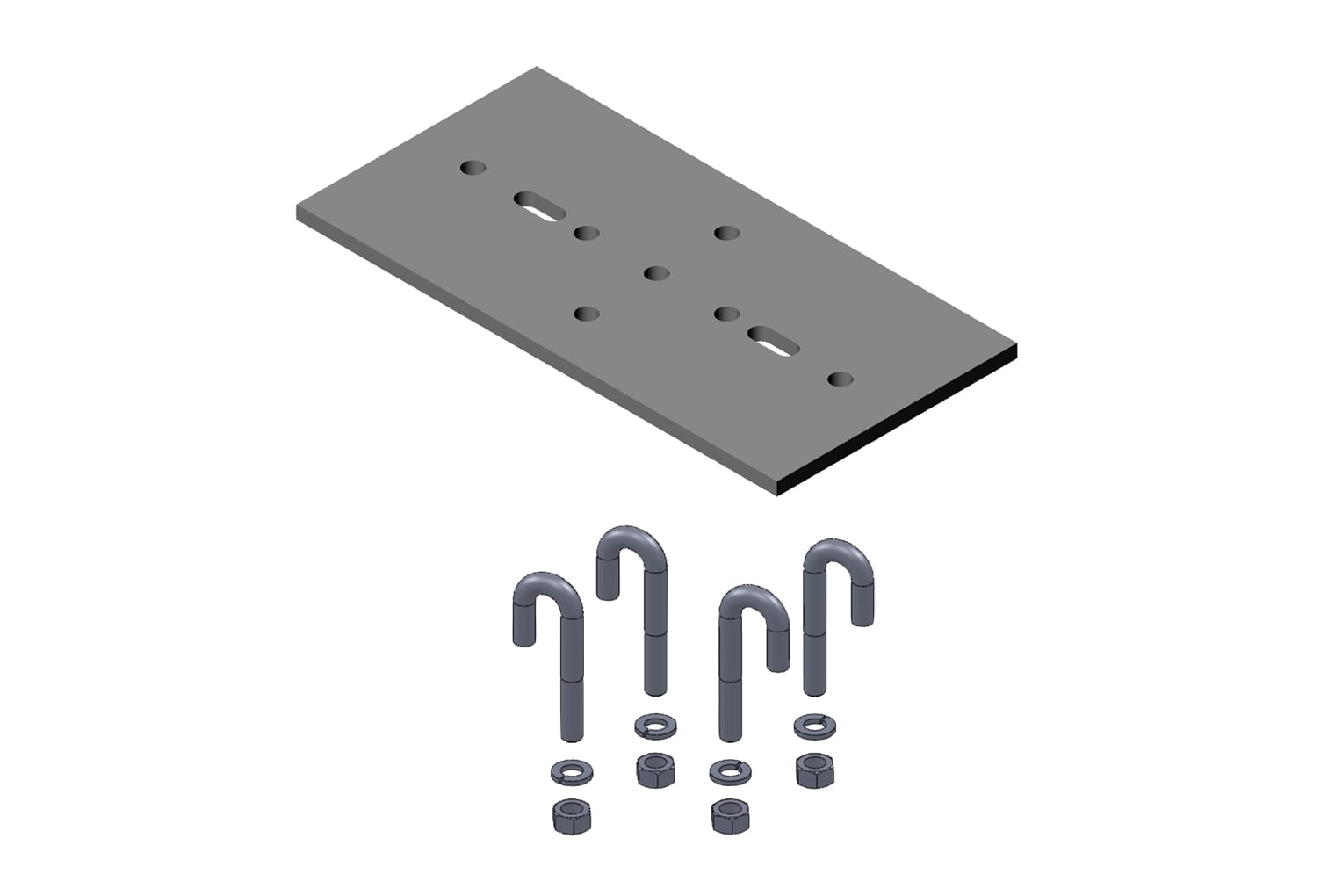

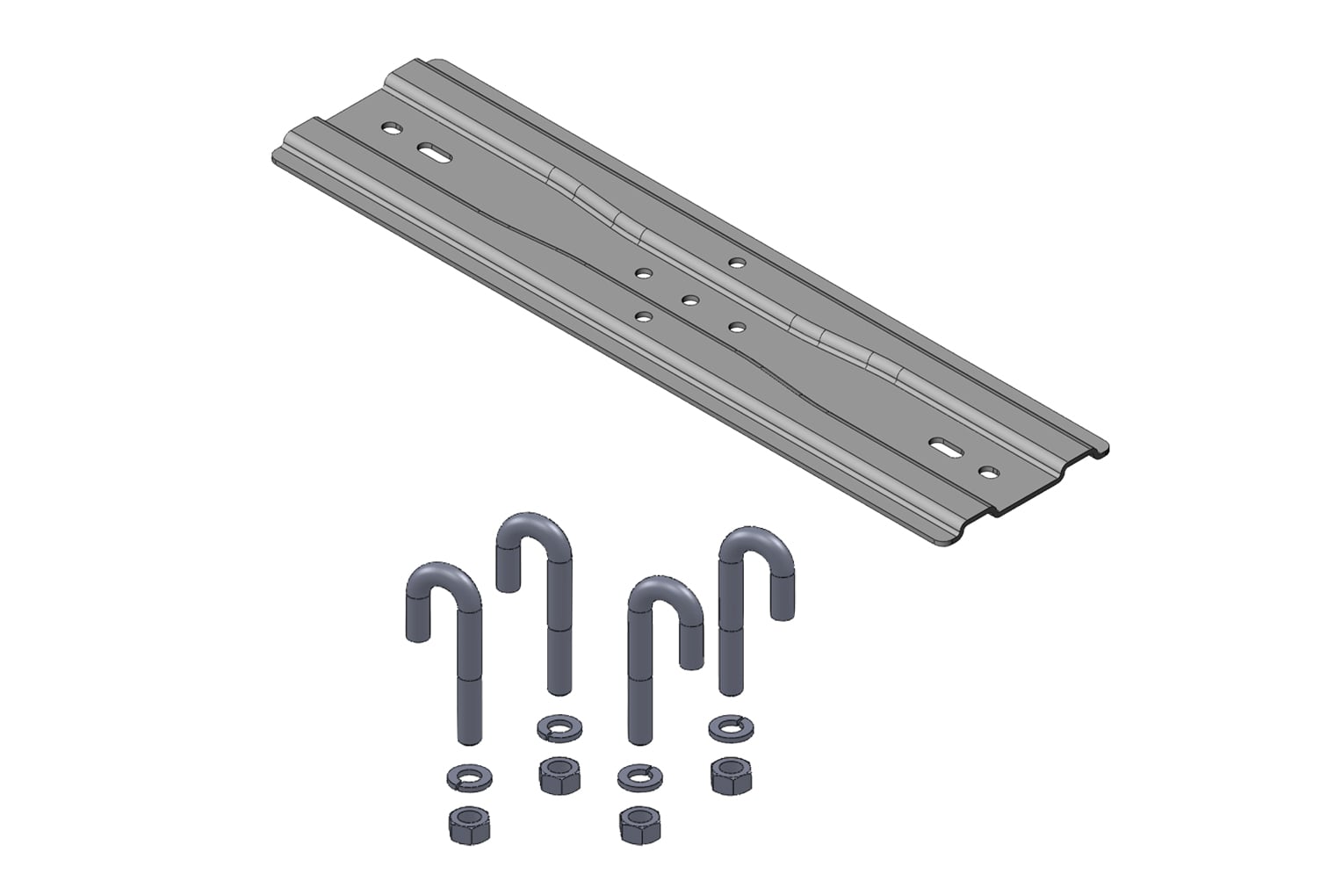

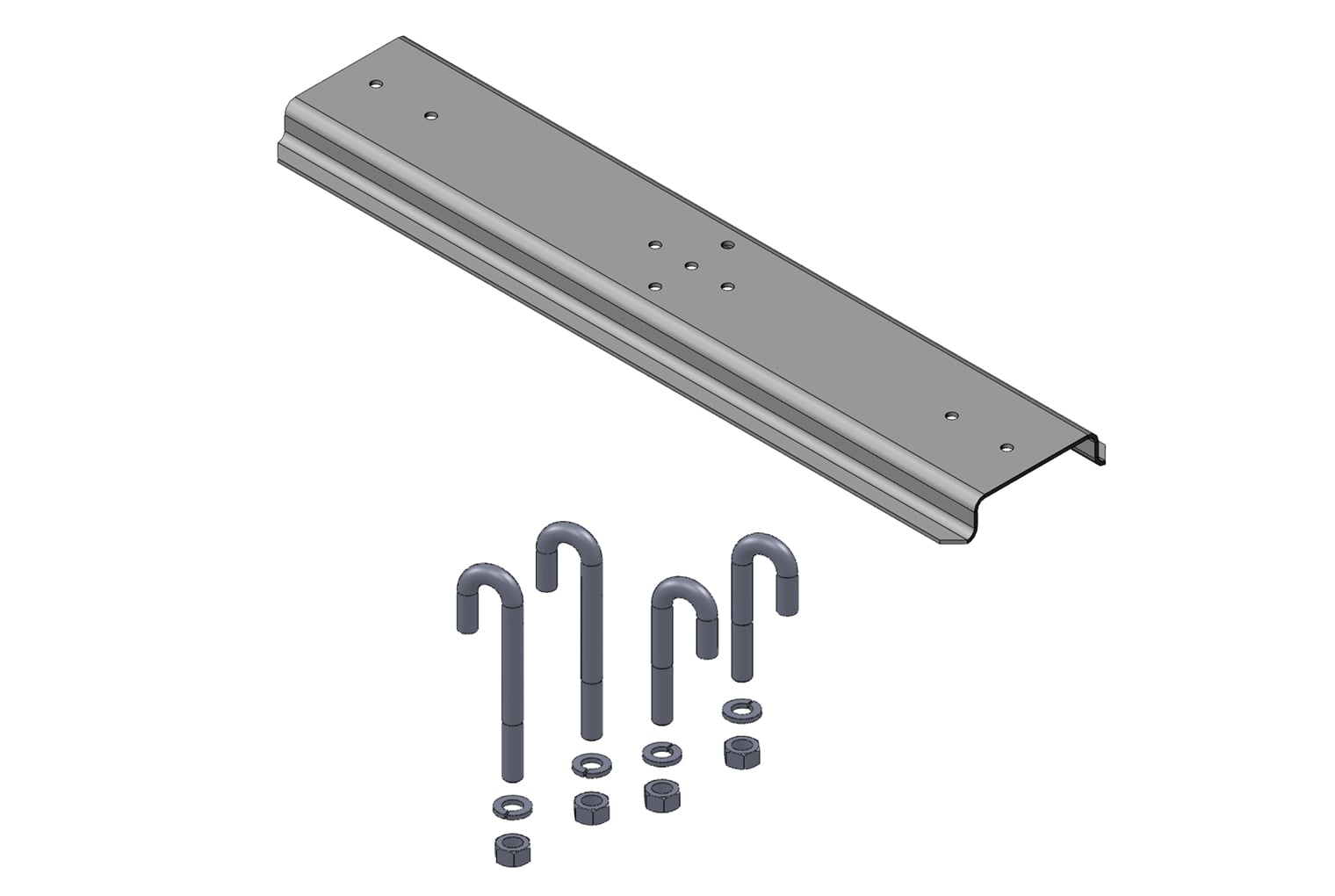

- Kit consist of:
- (1) mounting plate
- (4) J-Bolts, 5/16-18
- (4) hex nuts, 5/16-18
- (4) split lock washers, 5/16"
